i-TMF
Designed for Static and Dynamic Applications Such as Tank and Vessel Weighing

I-TMF300

Maximum Capacity 300 kg
Material Mild Steel Powder coated
Protection Rating IP68
Item Number: 30924554
Request a Quote ADD TO QUOTE LIST
View All i-TMF Models
Overview

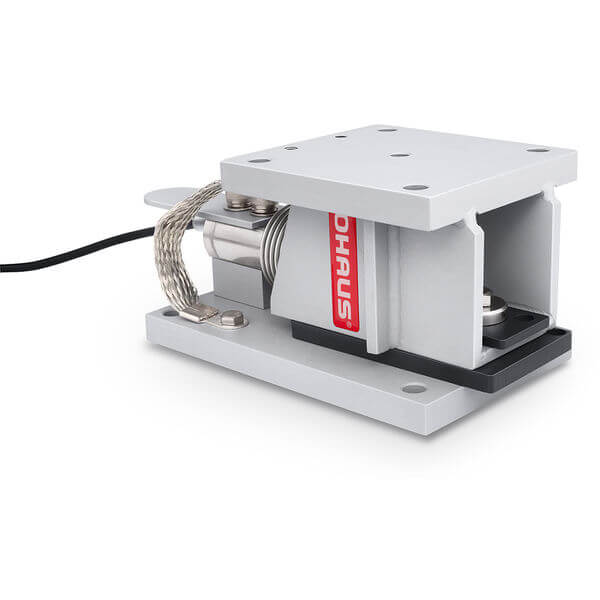

Crafted from either alloy steel or stainless steel, the i-TMF weighing module arrives pre-assembled for effortless installation. It is highly suitable for applications in tank weighing, level measurement, and vessel weighing systems.
Applications
NA
Display
NA
Operation
NA
Communication
NA
Construction
i-TMF weighing modules are available with alloy steel load cell and mounting hardware. i-TMFS weighing modules are available with stainless steel load cell as well as mounting hardware.
Design Features
150% overload capacity protection
Specifications
Maximum Capacity 300 kg
Material Mild Steel Powder coated
Protection Rating IP68
Metrology III
Net Weight 5.9 kg
Working Environment -10°C – 40°C, 85%RH, non-condensing
Hazardous Approval N/A
Load Cell 350 Ω analog load cells
Accessories

Item Number

30904121

Description

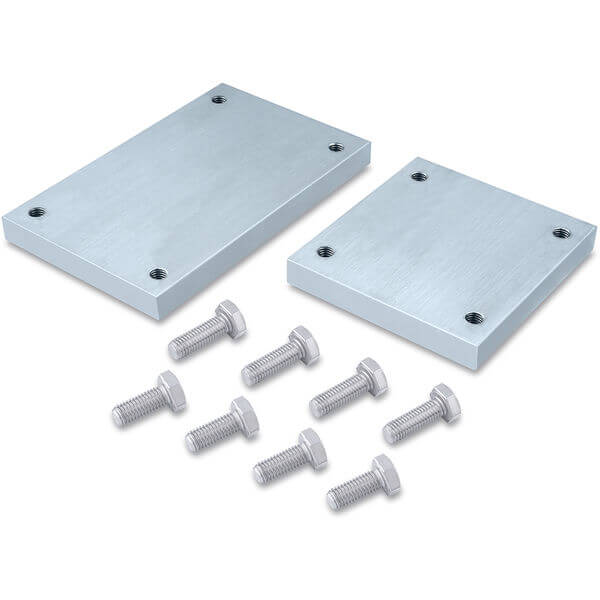

Mounting plate set TMF 300-500kg CS

Request a Quote Add To Quote List Remove From Quote List

Item Number

30579478

Description

Signal Double shield 15m WM

Request a Quote Add To Quote List Remove From Quote List

Item Number

30579479

Description

Signal Double shield 30m WM

Request a Quote Add To Quote List Remove From Quote List
